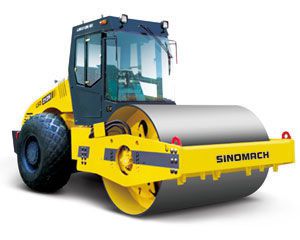

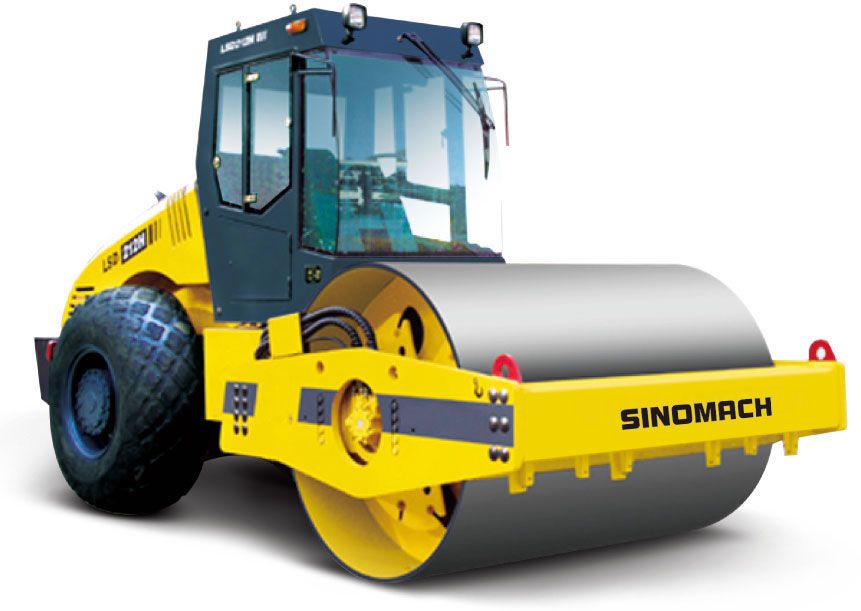

LSD212H Hydraulic Vibratory Single Drum Road Roller

LSD212H Hydraulic Vibratory Single Drum Road Roller

Hydraulic Single Drum Vibratory Rollers LSD212HA-3

Main performance parameters
LSD212HA-3
Operating mass 12000kg
Static linear load 303N/cm
Vibration amplitude 1.8/0.9mm
Vibration frequency 30/36Hz
Centrifugal force 270/180kN
Travel speed 10km/h
Gradeability 40%
Turning radius 6500mm
Drum width 2100mm
Drum diameter 1500mm
Wheelbase 3050mm
Ground clearance 472mm
Diesel engine model Cummins 6BT5.9
Diesel engine power 110kw
Overall dimensions 6000mm×2250mm×2950mm

As an experienced hydraulic vibratory single drum road roller manufacturer and supplier in China, we at SINOMACH also provide road milling machine, crawler excavator, wheel loader, and pneumatic tire road roller, among others.
