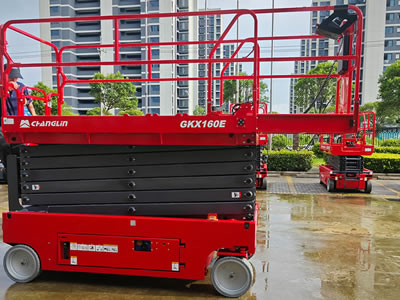

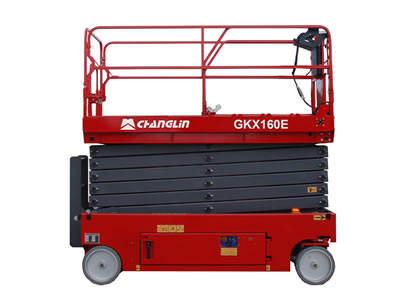

Electric Scissor Lift GKX160E

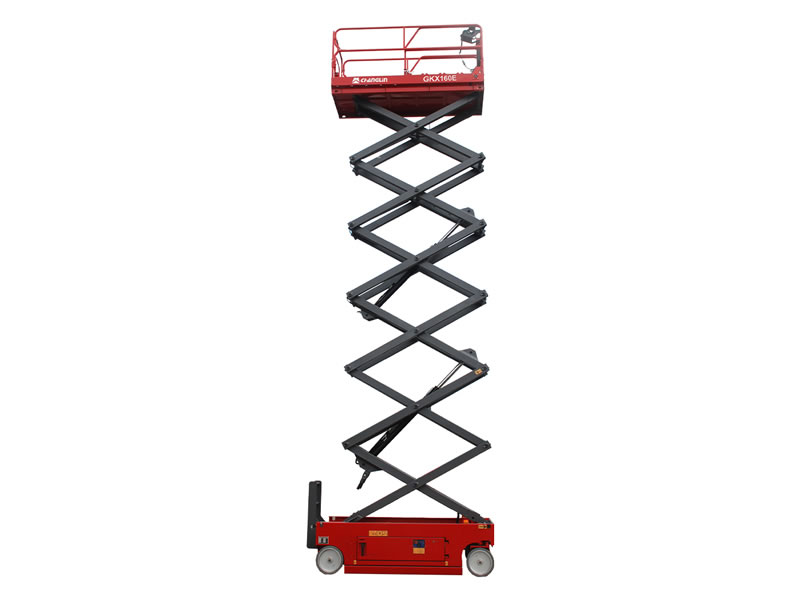

This self-propelled electric scissor lift offers a maximum working height of 15.7 meters with a compact overall width of 1.25 meters. Equipped with an X-shaped scissor lifting mechanism, it provides a spacious platform that accommodates 2-3 workers along with their tools and equipment, ensuring efficient and safe operation.

  • Max. Working Height: 15.7m
  • Lift Capacity: 250kg
  • Max. Load Capacity : 2 persons
Inquiry
Electric Scissor Lift GKX80E
  • Electric Scissor Lift GKX80E
  • Electric Scissor Lift GKX80E
  • Electric Scissor Lift GKX80E
    • Specifications
    Model GKX160E
    Dimensions
    Max. platform height (m) 13.7
    Min. platform height (m) 1.45
    Max. working height (m) 15.7
    Max. outreach (m) 0.9
    Overall length (m) 2.84
    Overall width (m) 1.25
    Overall Height (folded guardrails) (m) 2.08
    Overall Height (unfolded guardrails) (m) 2.68
    Wheelbase (m) 2.21
    Ground clearance-pothole protection board ground clearance (up) (m) 0.15
    Ground clearance-pothole protection board ground clearance (down) (m) 0.019
    Platform size (L×W×H) (m) 2.64m*1.12m*1.1
    Length-platform extended (m) 3.54
    Overall length (extended platform) (m) 3.75
    Skirting board height (m) 0.15
    Performance
    Lifting capacity (kg) 250
    Lifting capacity (extended platform) (kg) 113
    Max. load capacity (indoor/outdoor) 2/00
    Drive speed (stowed) (km/h) 3.2
    Drive speed(raised) (km/h) 0.7
    Rising time (s) 70
    Lowering time (s) 45
    Gradeability (2WD) 25%
    Tilt sensor-front to back/side to side 3°/1.5°
    Turing radius (inside/outside) (m) 0/2.75
    Max. lateral force (indoor/outdoor) (N) 400/0
    Tire specification/type (mm) 380×127/solid tire
    Power
    Drive mode Hydraulic/electric Drive, 2WD×2WS
    Power unit motor (voltage/power) 24V/3.3kW
    Hydraulic tank capacity (L) 23
    Hydraulic system pressure (Mpa) 21
    Battery specifications (lead-acid battery/lithium battery) (Ah) 235
    System voltage (V) 24
    Control voltage (V) 24
    Charger (input voltage/output current) 96-265V/30A
    Weight
    Weight-CE/AUS Standard (kg) 3345
    Standard GB/CE
    Features
    Flexible Operation and Handling
    • Ultra-stable design significantly enhances safety, with a compact body and a wide working area
    • Standard forklift pockets for efficient equipment transportation
    • Foldable guardrails for easier handling and convenient transport
    Reduced Maintenance Costs
    • High component compatibility ensures easy spare parts replacement without supply concerns
    • Double-door design for quick and convenient maintenance access
    • Integrated fault diagnosis system with clear error display for rapid troubleshooting
    Enhanced Reliability
    • Multi-level protection for the lifting circuit ensures safe and reliable performance
    • Anti-collision strips provide effective protection against scratches and impacts
    • Automatic pothole and tilt protection systems guarantee safe operation at all times
    Configurations
    Standard Features
    Manual emergency lowering system Safety support bar Automatic pothole protection
    Platform swing gate Charging indicator Flashing light
    Extended platform Diagnosis system Control with proportional operation
    Foldable platform 2×2 drive Automatic brake system
    Manual brake release Anti collision strip Forklift and lifting holes
    Widened non-marking tires Emergency lowering system Maintenance free battery
    AC power supply to platform Tilt alarm
    Buzzer Manual control box
    Hour meter Emergency stop button
    Optional Features
    Air line to platform Overload sensor Lithium battery
    Power socket to platform GPS Top stop sensor
    Platform work light Horn Electrophoretic coating process
