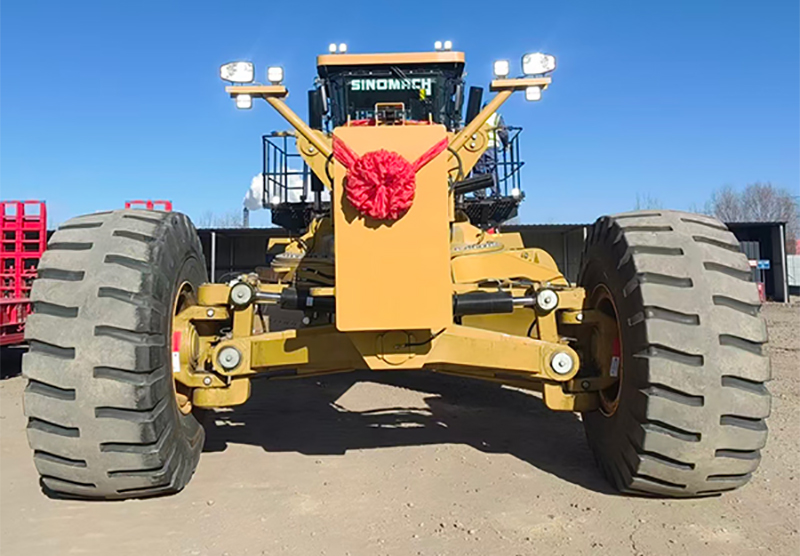

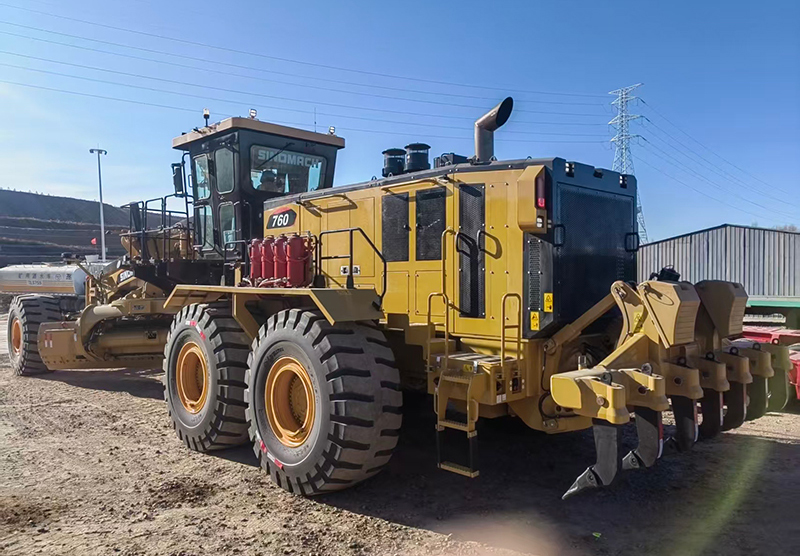

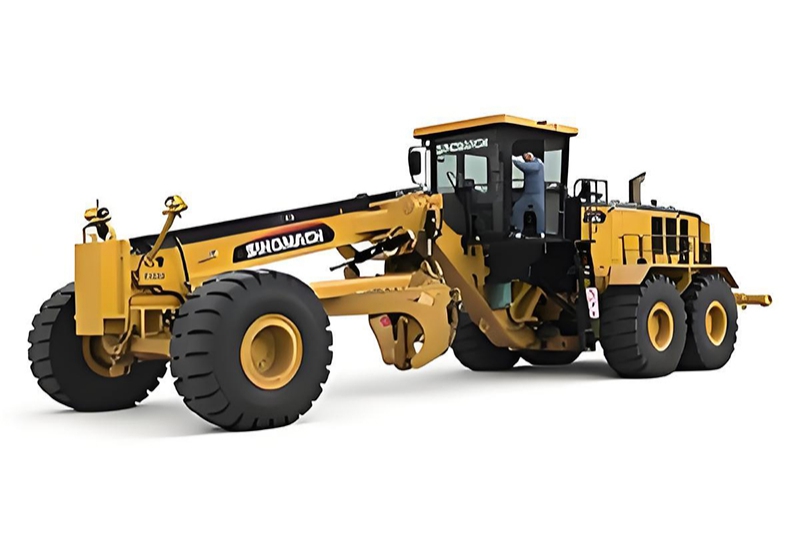

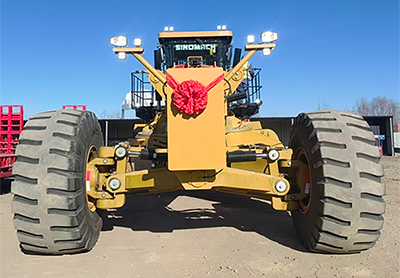

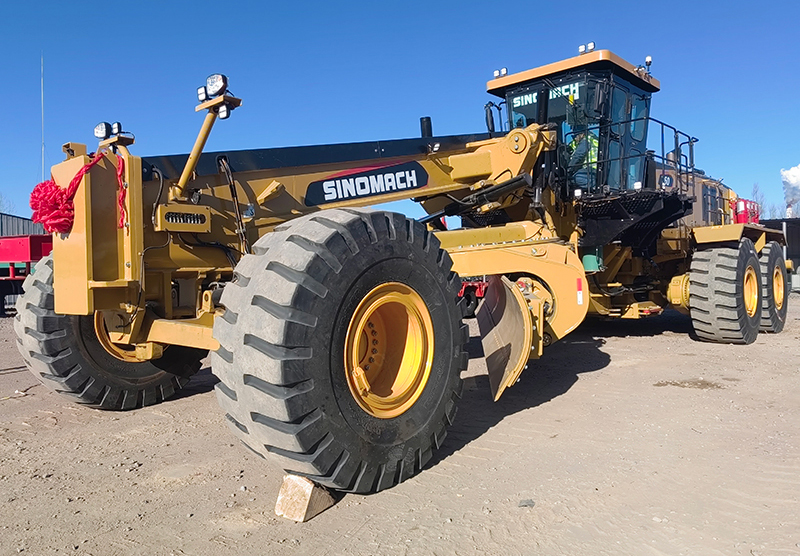

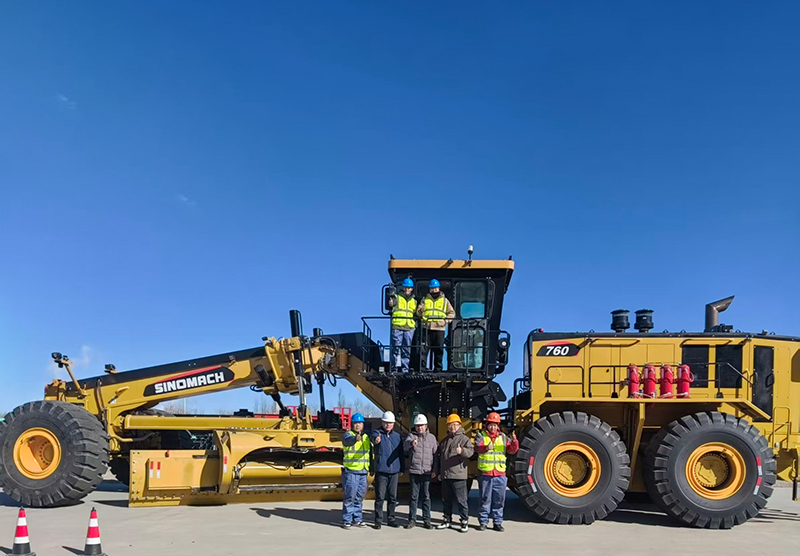

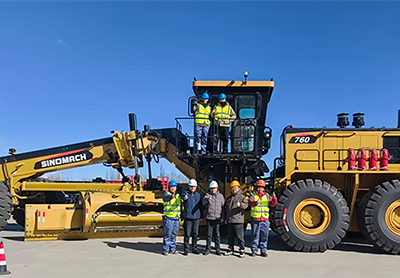

The PY760T motor grader is engineered for demanding applications in mines, quarries, and large-scale earthmoving projects. It features a Cummins engine, a robust transmission system, and a 7.3-meter blade, delivering strong traction, stable performance, and reliable efficiency even in harsh operating environments.
Operating weight: 76,000KG
Rated power: 567kW
Blade width: 7300MM
Inquiry
Video
Applications
Open-pit mining haul road maintenance
Quarry road grading
Large-scale earthmoving projects
Mining infrastructure development
Specifications
Basic specifications
Engine model
Cummins QSK19
Rated power
567kW / 2100rpm
Operating weight
76,000kg
Dimensions (L×W×H)
16460 × 4460 × 4790mm
Blade length
7300mm
Tire size
29.5R29 L5
Wheel track
3650mm
Wheelbase
10480mm
Ground clearance
567mm
Fuel tank
1250L
Performance specifications
Traveling speed, forward
6.4 – 42.9km/h
Traveling speed, reverse
6.4 – 42.9km/h
Tractive force
≥390kN
Gradeability
≥30%
Hydraulic pressure
25Pa
Maneuverability
Front wheel steering angle
±48°
Front wheel lean angle
±18°
Articulation angle
±25°
Minimum turning radius
12.4m
Features

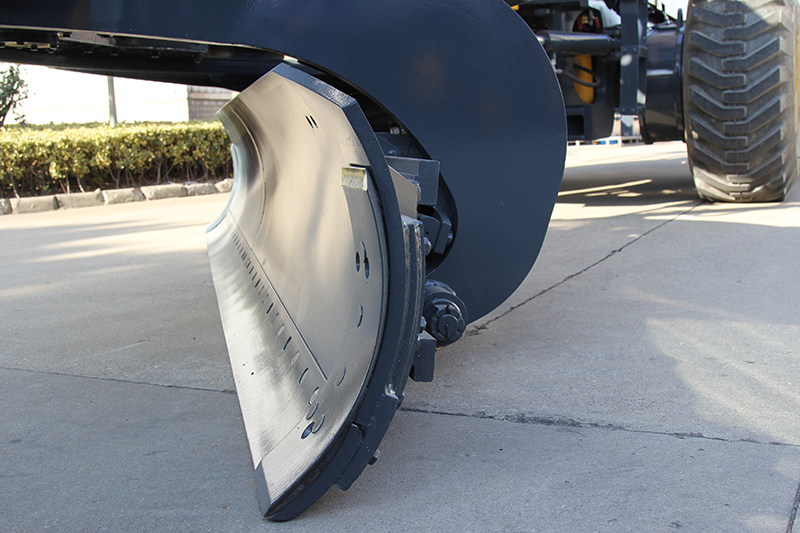

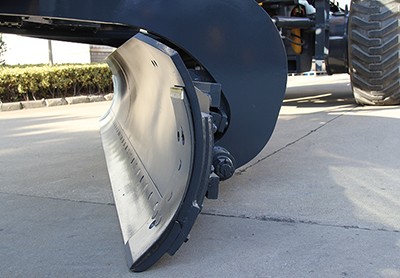

The extended 7,300 mm blade significantly improves grading efficiency, making it suitable for large-scale haul road maintenance.
The extended 7,300 mm blade significantly improves grading efficiency, making it suitable for large-scale haul road maintenance.
The motor grader delivers high power output with a Cummins engine rated at 567 kW, ensuring sufficient performance for heavy-duty mining operations.
The heavy-duty structure, with an operating weight of 76 tons, provides excellent stability and strong traction in high-intensity working conditions.
The system offers strong tractive performance, with a maximum tractive force of ≥390 kN, allowing efficient operation in heavy-load grading and complex terrain.
The key systems incorporate internationally recognized brand components, ensuring high reliability and consistent global service support.
The motor grader delivers high power output with a Cummins engine rated at 567 kW, ensuring sufficient performance for heavy-duty mining operations.
The heavy-duty structure, with an operating weight of 76 tons, provides excellent stability and strong traction in high-intensity working conditions.
The extended 7,300 mm blade significantly improves grading efficiency, making it suitable for large-scale haul road maintenance.
The system offers strong tractive performance, with a maximum tractive force of ≥390 kN, allowing efficient operation in heavy-load grading and complex terrain.

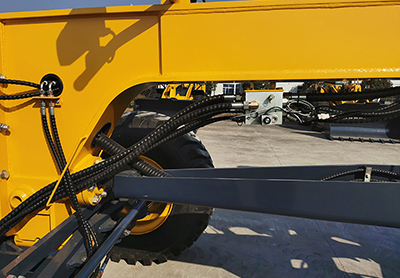

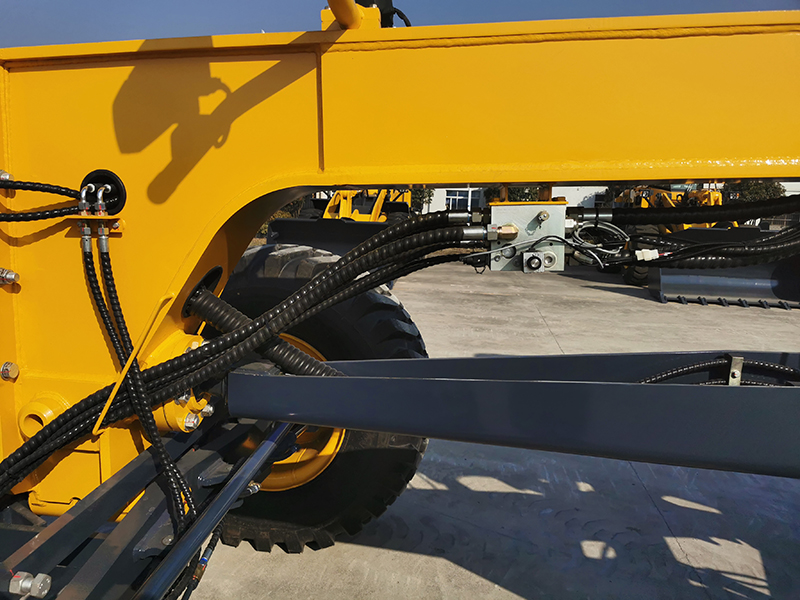

The load-sensing hydraulic system enables precise control and enhances overall operational efficiency.
The key systems incorporate internationally recognized brand components, ensuring high reliability and consistent global service support.
