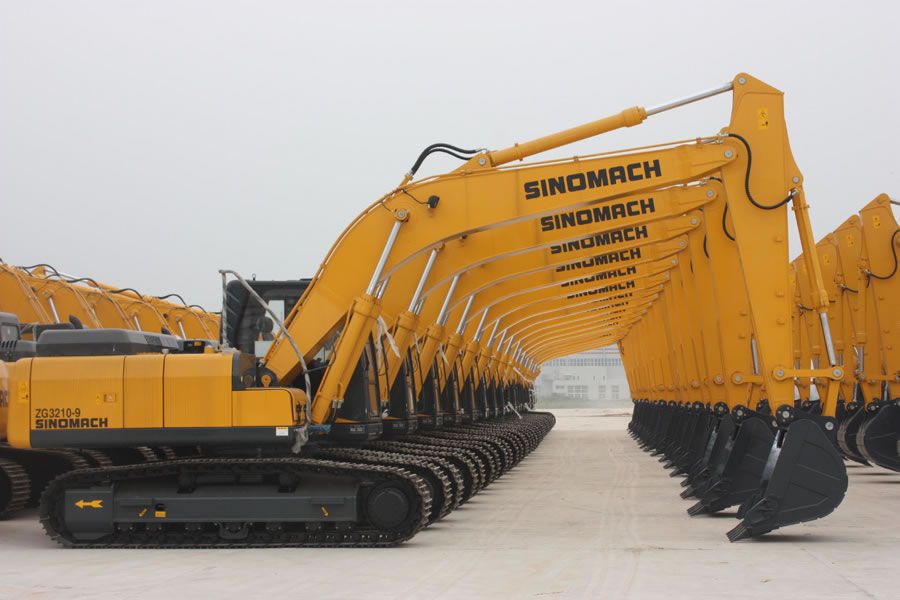

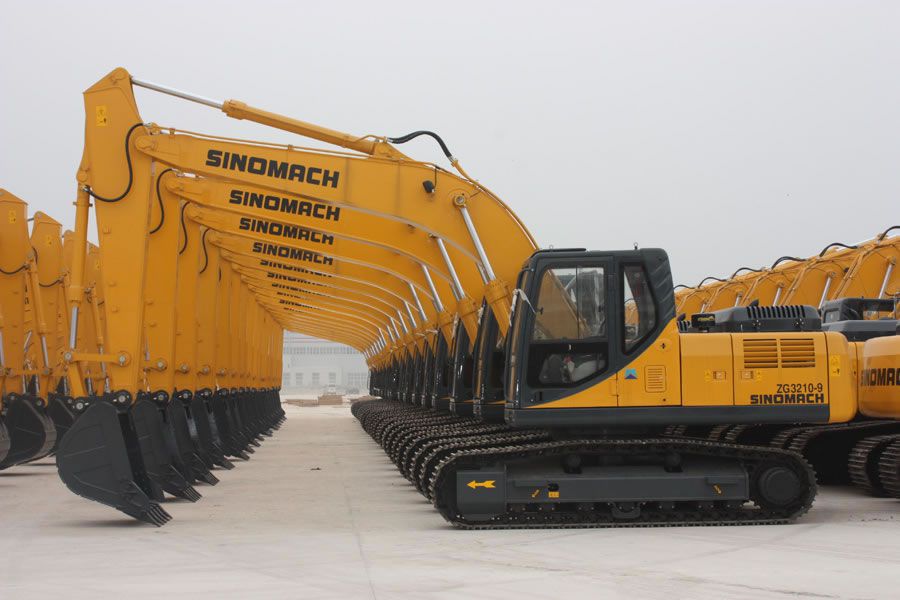

ZG3210-9 Crawler Excavator

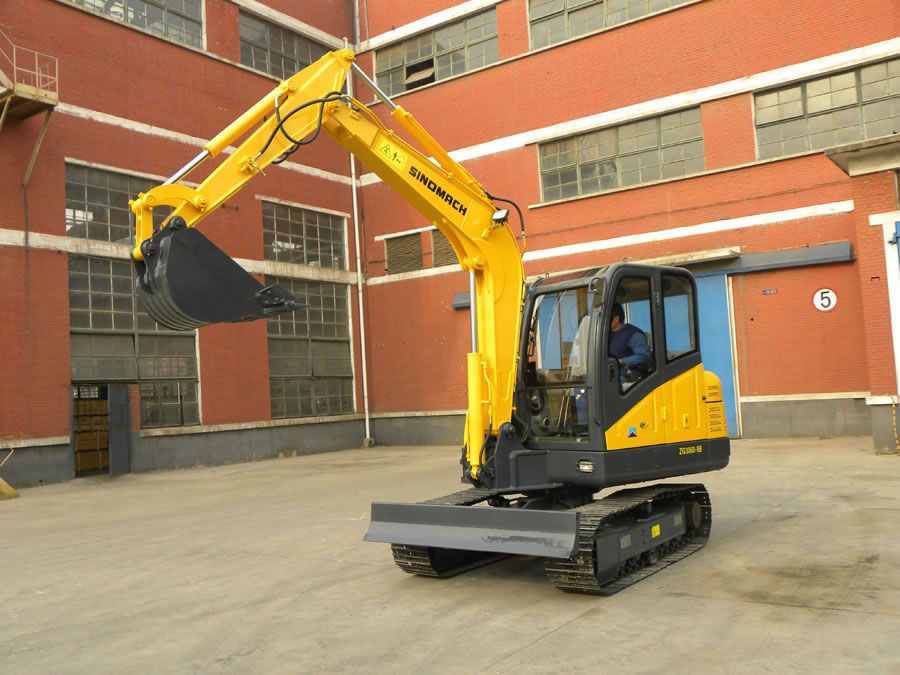

ZG3065-9(B) Crawler Excavator
3210-9 Hydraulic Excavator Specifications 1. Our hydraulic excavator is equipped with reliable original Cummins engine.
2. The excavator comes with a reliable hydraulic system, with export pumps, motor and valves.
3. The hydraulic excavator is designed with electronic monitoring and control system which has multifunctional LCD display showing information.
4. With a stepped-up device, the hydraulic excavator suits use in mines.
5. Strengthened X-shaped box structure.
| Overall Dimension | ||
| 1 | Length (At transportation) | 9520mm |
| 2 | Width (At transportation) | 2800mm |
| 3 | Height (At transportation) | 3030mm |
| 4 | Height (To the top of the cab) | 2977mm |
| 5 | Chassis Length | 4160mm |
| 6 | Width of Track Shoe | 600mm |
| 7 | Wheel Base | 3370mm |
| 8 | Track Gauge of Crawler | 2200mm |
| 9 | Min. Ground Clearance | 470mm |
| Main Technical Parameters | ||
| 1 | Operating Weight | 20700Kg |
| 2 | Rated Standard Bucket Capacity(SAE standard) | 0.91m3 |
| 4 | Max. Digging Force of Bucket/Rod | 13700/10200kgf |
| 5 | Max. Dump Clearance | 6813mm |
| 6 | Max. Digging Height | 9600mm |
| 7 | Max. Vertical Digging Depth | 6104mm |
| 8 | Max. Digging Depth | 6592mm |
| 9 | Max. Digging Radius | 9953mm |
| 10 | Min. Front Fitting Radius | 3560mm |
| 11 | The Rear Rotary Radius | 2800mm |
| 12 | Swing Speed | 12.4rpm |
| 13 | Grounding Pressure | 0.47PSI |
| 14 | Traveling Speed | |
| (1) 1st gear forward/backward | 5.0km/h | |
| (2) 2nd gear forward/backward | 3.3km/h | |
| 15 | Gradeability | 35° (70%) |
| Diesel Engine | ||
| 1 | Model | Cummins 6BTAA5.9-C150 (Tier II) |
| 2 | Type | Direct injection, turbocharged, and air-to-air cooling system. |
| 3 | Rated Output | 112KW |
| 4 | Bore of Cylinder/Stroke | 102 /120 mm |
| 5 | Displacement of Cylinder | 5.883L |
| 6 | Starting Voltage of Motor | 24V, 70A |
| 7 | Power of Alternator | 24V, 4.5KW |
| 8 | Rated Speed | 1950r/min |
| 9 | Max. Torque | 614(N.M)@1500rpm |
| 10 | Starting Type | Electric |
| 11 | Min. Specific Fuel Consumption | 208g/Kw.h |
| Working Device Hydraulic System | ||
| 1 | Type of Main Pump | Axial piston pump with variable displacement |
| 2 | Manufacturer of Main Pump | Tongmyung (South Korea) |
| 3 | Model of Main Pump | T5V112DP |
| 4 | Displacement of Main Pump | 2×108cc/rev |
| 5 | Max. Flow Rate | 2×211L/min |
| 6 | Pressure of Main Relief Valve | 31.4Mpa |
| Step-up: 34.3Mpa | ||
| 7 | Type of Pilot Pump | Single stage, fixed displacement gear pump |
| 8 | Pressure of Pilot System | 3.92Mpa |
| 9 | Type of Swing Motor | Fixed displacement axial piston motor |
| 10 | Pressure of Swing Circuit | 24.5Mpa |
| 11 | Manufacturer of Main Control Valve | Parker(South Korea) |
| 12 | (D*L)Dimension of Boom Cylinder | Ф125*1220mm |
| 13 | (D*L)Dimension of Bucket Arm Cylinder | Ф135*1470mm |
| 14 | (D*L)Dimension of Bucket Cylinder | Ф120*1060mm |
| Driving System | ||
| 1 | Type of Motor | Fixed displacement axial piston motor |
| 2 | Pressure of Propel Motor | 34.3Mpa |
| 3 | Type of Final Reducer | Two-stage planetary reduction |
| 4 | Max. Traction Force | 197KN |
| Brake System | ||
| 1 | Type of Traveling Brake | Auto release, hydraulic control, wet-type multi-plate brake |
| 2 | Type of Swing Brake | Auto release, hydraulic control, wet type brake |
| Oil Capacity | ||
| 1 | Fuel(Diesel) | 400L |
| 2 | Engine Lubricating Oil | 24L |
| 3 | Coolant | 35L |
| 4 | Oil for Swing Device | 4.2L |
| 5 | Oil for Travelling Reducer | 2×5.5L |
| 6 | Hydraulic Oil | 270L |
We are a China-based crawler excavator manufacturer and supplier. We also offer wheel loader, crawler bulldozer, road paving machine, road milling machine, and more.
