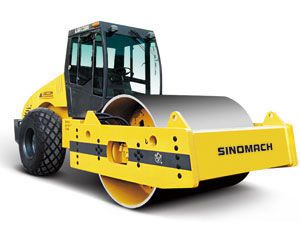

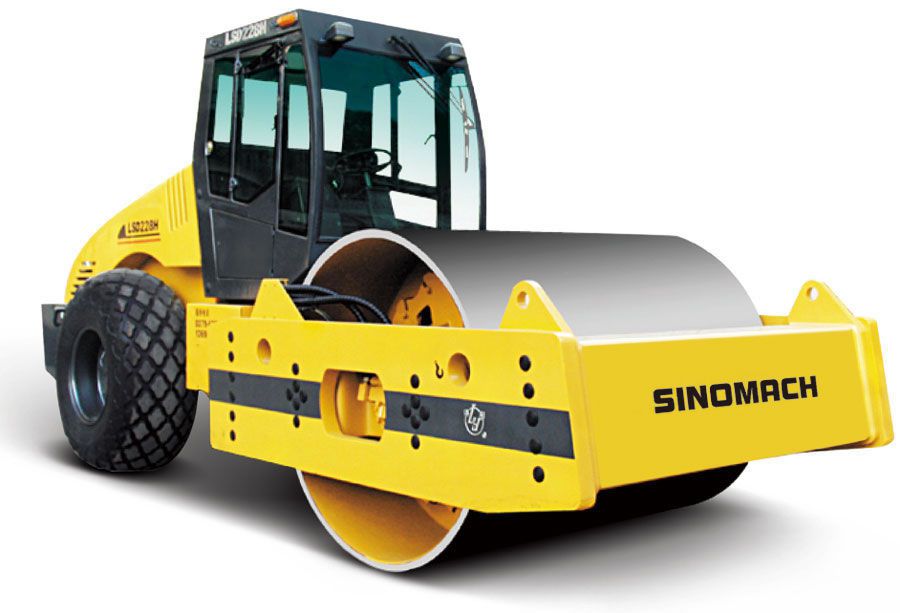

LSD228H Hydraulic Vibratory Single Drum Road Roller

LSD228H Hydraulic Vibratory Single Drum Road Roller

LSD228H Hydraulic Single Drum Vibratory Roller

Main performance parameters
LSD228H
Operating mass 28000kg
Static linear load 830N/cm
Vibration amplitude 2.0/1.0mm
Vibration frequency 28/35Hz
Centrifugal force 440/360kN
Travel speed 9km/h
Gradeability 45%
Turning radius 7500mm
Drum width 2130mm
Drum diameter 1650mm
Wheelbase 3500mm
Ground clearance 470mm
Diesel engine model Cummins6CTA8.3
Diesel engine power 160kW
Overall dimensions 6540mm×2392mm×3048mm

As a professional hydraulic vibratory single drum road roller manufacturer and supplier in China, we also produce landfill compactor, motor grader, crawler bulldozer, truck crane, and much more.
