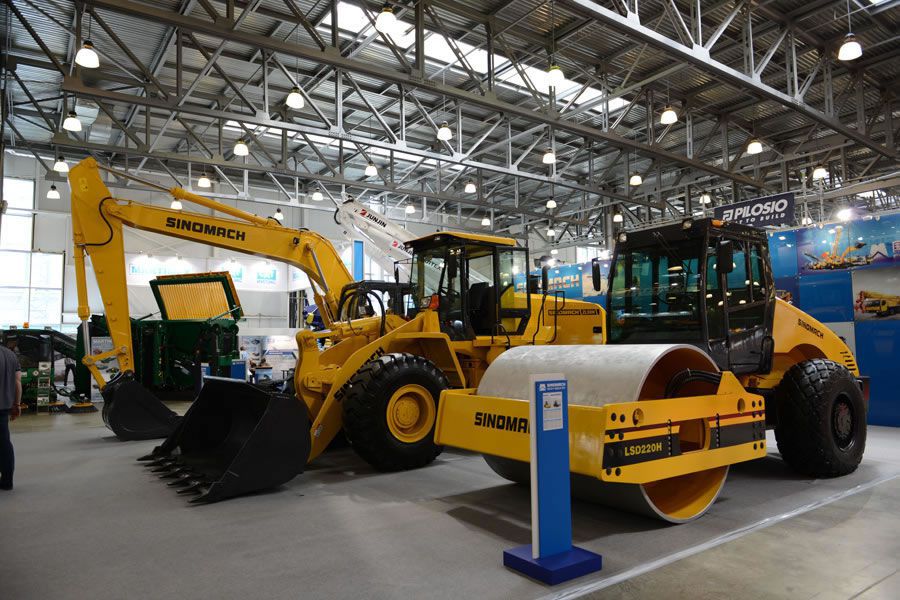

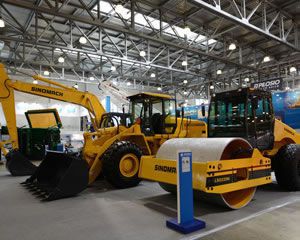

LSD220H Hydraulic Vibratory Single Drum Road Roller

LSD220H Hydraulic Vibratory Single Drum Road Roller

LSD220H Hydraulic Single Drum Vibratory Roller

Main performance parameters
LSD220H
Operating mass 20000kg
Static linear load 600N/cm
Vibration amplitude 2.0/1.0mm
Vibration frequency 28/35Hz
Centrifugal force 380/300kN
Travel speed 11.2km/h
Gradeability 45%
Turning radius 7000mm
Drum width 2130mm
Drum diameter 1600mm
Wheelbase 3148mm
Ground clearance 472mm
Diesel engine model Cummins6CTA8.3
Diesel engine power 160kW
Overall dimensions 6005mm×2360mm×2993mm

As a China-based hydraulic vibratory single drum road roller manufacturer, SINOMACH also supplies skid steer loader, wheel loader, motor grader, road paver, and much more.
