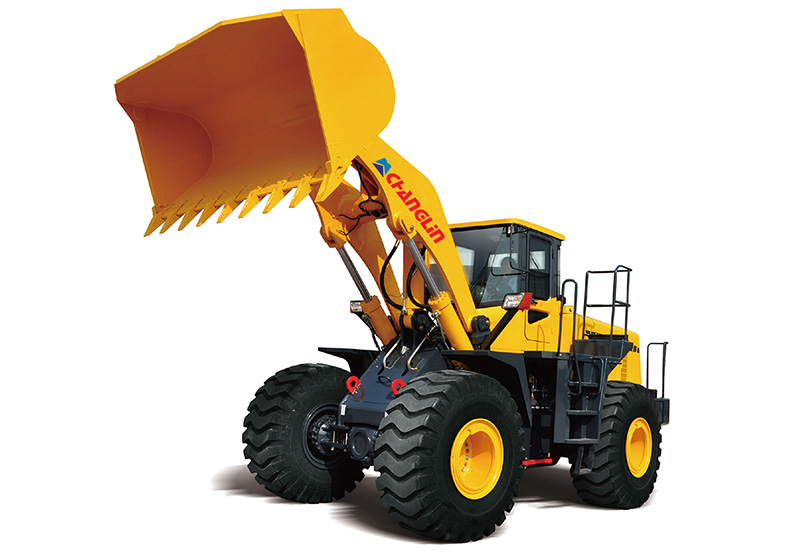

Wheel Loader ZL75H
Specification Download
printWheel Loader ZL75H

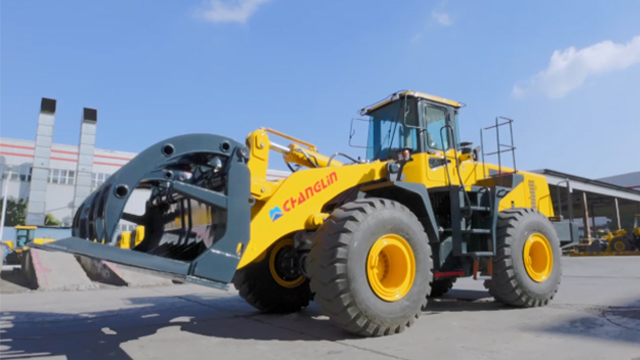

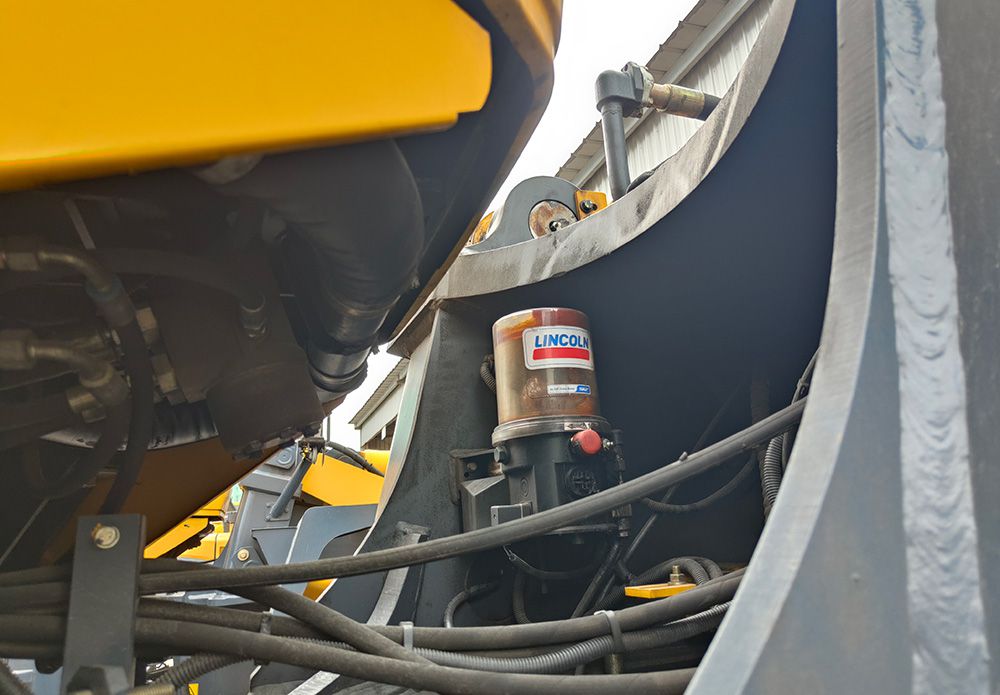

Description of Wheel Loader ZL75H:Wheel loader ZL75H is also a type of construction equipment (construction machinery/engineering vehicle). This wheel loader ZL75H is equipped with reliable original Cummins engine, famous original ZF wet-type axles with multi-disc limited-slip differentials, combined seal cylinder which obtains high seal performance and more reliability, dual brake valve & dual pipe full hydraulic brake and central lubrication.
Features of Wheel Loader ZL75H:
1. KD switch allows better efficiency & easy operation
2.Reliable ZF transmission case and Torque Converter
3.Bucket automatic leveling ability
4. It can deliver maximum traction in changing traction conditions
Applications of Wheel Loader ZL75H:
Wheel loader ZL75H is a type of construction equipment (engineering vehicle, construction machinery) that is primarily used to scoop up material such as asphalt, demolition debris, dirt, gravel, logs, raw minerals, rock, sand, wood chips, etc. to another place.
Specifications of Wheel Loader ZL75H:
| Overall Dimension | |||
| 1 | Length(with bucket on ground) | 8696(mm) | |
| 2 | Width(to outside of wheels) | 3099(mm) | |
| 3 | Bucket width | 3266(mm) | |
| 4 | Height(To the top of the cab) | 3730(mm) | |
| 5 | Wheel base | 3400(mm) | |
| 6 | Tread | 2350(mm) | |
| 7 | Min. ground clearance | 495.5(mm) | |
| Main Technical Specification | |||
| 1 | Rated load | 7500(Kg) | |
| 2 | Operating weight | 23500kg | |
| 3 | Rated bucket capacity | 4.2(m3) | |
| 4 | Max. breakout force | 220KN | |
| 5 | Max. Drawing force | 222 KN | |
| 6 | Max. dump clearance | 3220(mm) | |
| 7 | Dump reach | 1275(mm) | |
| 8 | Dump angle at any position | ≥450 | |
| 9 | Digging depth(with bucket bottom horizontal) | 221(mm) | |
| 10 | Min. turning radius | ||
| (1)Outside of bucket | 7042(mm) | ||
| (2)Outside of rear wheel | 6487(mm) | ||
| 11 | Pivot angle frame | 38+10 | |
| 12 | Oscillating angle of rear axle | +12o | |
| 13 | Lifting time of bucket | 6.1(sec.) | |
| 14 | Lowering time of bucket | 3.8(sec.) | |
| 15 | Dumping time | 1.9(sec.) | |
| 16 | Traveling speed(Km/h) | ||
| (1)1st gear (Forward/reverse) | 7.4 | ||
| (2)2nd gear (Forward/reverse) | 12.4 | ||
| (3)3rd gear (Forward/reverse) | 25.9 | ||
| (4)4th gear (Forward) | 37 | ||
| Diesel engine | |||
| 1 | Model | Original Cummins M11-C290 | |
| 2 | Type | Direct injection. Turbocharged. Water cooling | |
| 3 | Rated output | 216(Kw) | |
| 4 | Inter-bore of cylinder/stroke | 125/147(mm) | |
| 5 | Total exhaust of cylinder | 10.8(L) | |
| 6 | Model of starting motor | 42MT400 | |
| 7 | Power of start motor | 7.5(KW) | |
| 8 | Voltage of starting motor | 24(V) | |
| 9 | Rated speed | 2100(r/min.) | |
| 10 | Max. Torque | 1329(N.m) | |
| 11 | Starting type | Electric | |
| 12 | Min. specific fuel consumption | 198(g/Kw.h) | |
| 13 | Engine specific oil consumption | 1.0 (g/Kw.h) | |
| 14 | Net weight | 980(Kg) | |
| Transmission System | |||
| 1. Torque Converter | |||
| 1 | Type | 3-element.single stage | |
| 2 | Torque ratio | 2.985 | |
| 3 | Max. Dia. of flow path | 370(mm) | |
| 4 | Cooling type | Pressure oil circulating | |
| 2. Gear Box | |||
| 1 | Model | ZF4WG308 | |
| 2 | Type | Power shift, spur gear constant-mesh | |
| 3 | Gear shift position | 4 Forward and 3 reverse gears | |
| 3. Axle and Tire | |||
| 1 | Type of main reducer | single stage | |
| 2 | Gear ratio of main reducer | 4.777 | |
| 3 | Type of final reducer | single stage planetary | |
| 4 | Gear of ratio of final reducer | 5.167 | |
| 5 | Total ratios | 24.685 | |
| 6 | Size of tyre | 26.5-25 -20PR (L-3) | |
| Working Device Hydraulic System | |||
| 1 | Model of oil pump(include brake pump) | 322-9529-157 | |
| 2 | System pressure | 21(MPa) | |
| 3 | Model of Muti-way directional valve | 7130-B97(HUSCO) | |
| 4 | Model of pilot valve | 406-1044-1145(HUSCO) | |
| 5 | (d*l)Dimension of lifting cylinder | Ф180*100*767(mm) | |
| 6 | (D*l)Dimension of tilting cylinder | Ф210*110*555(mm) | |
| Steering System | |||
| 1 | Type | Middle articulated frame. full hydraulic power | |
| 2 | Model of steering pump | 322-9114-008 | |
| 3 | Model of redirector | 150-1084 | |
| 4 | System pressure | 17.5MPa | |
| 5 | Dimension of steering cylinder | Ф100*50*441(mm) | |
| Brake System | |||
| 1 | Type of traveling brake | Wet type multi-disc brake Dual brake valve& dual pipe, full hydraulic brake | |
| 2 | System pressure | 15 (MPa) | |
| 3 | Type of emergency brake | Lower pressure alarm brake | |
| 4 | Type of parking brake | Electric control brake | |
| Oil Capacity | |||
| 1 | Fuel(diesel) | 423(L) | |
| 2 | Engine lubricating oil | 32(L) | |
| 3 | Oil for converter and gear box | 38(L) | |
| 4 | Oil for hydraulic system | 300(L) | |
| 5 | Oil for driving axles(F/R) | 70(L)+57(L) | |
