Wheel Loader 937H
Wheel Loader 937H

Wheel Loader 937H

1. The 937H Wheel Loader is equipped with Dongfeng Cummins Engine.
2. This Wheel loader adopts 3 forward and 3 reverse power shift transmission.
3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
Technical Specification:
Overall Dimension
1 Length (with bucket on ground) 6920(mm)
2 Width (to the outside of wheels) 2305(mm)

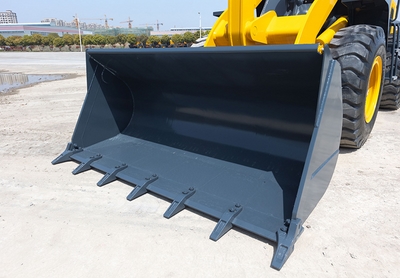

3 Bucket width 2430(mm)
4 Height (to the top of the cab) 3150(mm)
5 Wheel base 2750(mm)
6 Tread 1855(mm)
7 Min. ground clearance 360(mm)
Main Technical Specification
1 Rated load 3000(Kg)
2 Operating weight 10200KG
3 Rated bucket capacity 1.7(m3)
4 Max. breakout force 96kN
5 Max. dump clearance 2934(mm)
6 Dump reach 1043(mm)
7 Dump angle at any position ≥45°
8 Min. turning radius
(1) Outside of bucket 5600(mm)
(2) Outside of rear wheel 5205(mm)
9 Pivot angle frame 38+
10 Oscillating angle of rear axle +11°
11 Lifting time of bucket ≤5.1(sec.)
12 Lowering time of bucket ≤3.0(sec.)
13 Dumping time ≤1.1(sec.)
14 Traveling speed (Km/h), 3 forward and 3 reverse
(1) 1st gear forward 7.3
(2) 2nd gear forward 15.7
(3) 3rd gear forward 35
(1) 1st gear reverse 7.8
(2) 2nd gear reverse 16.8
(3) 3rd gear reverse 36
Diesel Engine
1 Model Dongfeng Cummins 6BT5.9-C120
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 87(KW)
4 Inter-bore of cylinder / stroke 102/120 (mm)
5 Total exhaust of cylinder 5.9 (L)
6 Voltage of starting motor 24(V)
7 Rated speed 2200(r/min)
8 Max. torque 440(N.M)/1500rpm
9 Starting type Electric
10 Min. specific fuel consumption 220(g/Kw.h)
Transmission System
1. Torque Converter
1 Model YJH315A-4 (Shanxi Aerospace Power)
2 Type 3-elements. Single stage
3 Torque ratio 3.1
4 Cooling type Pressure oil circulating
2. Transmission Case
1 Model Chinese Changlin
2 Type Power shift, spur gear constantly in mesh
3 Gear shift position 3 forward and 3 reverse gears

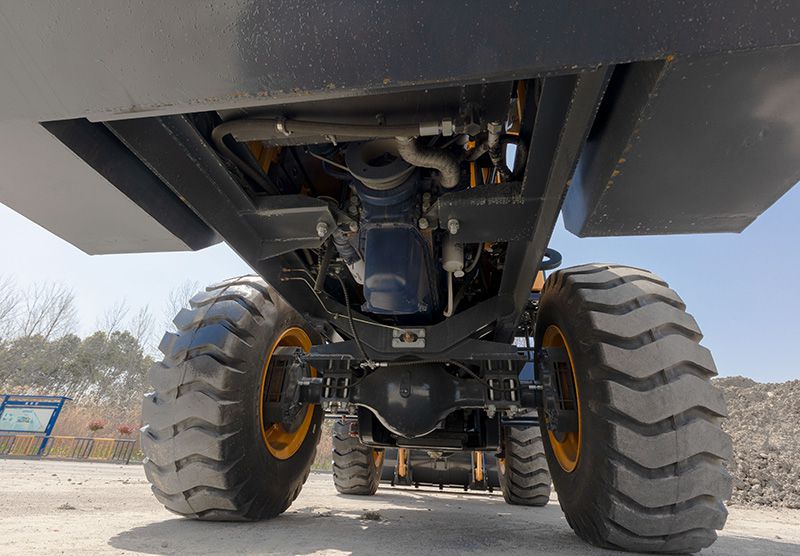

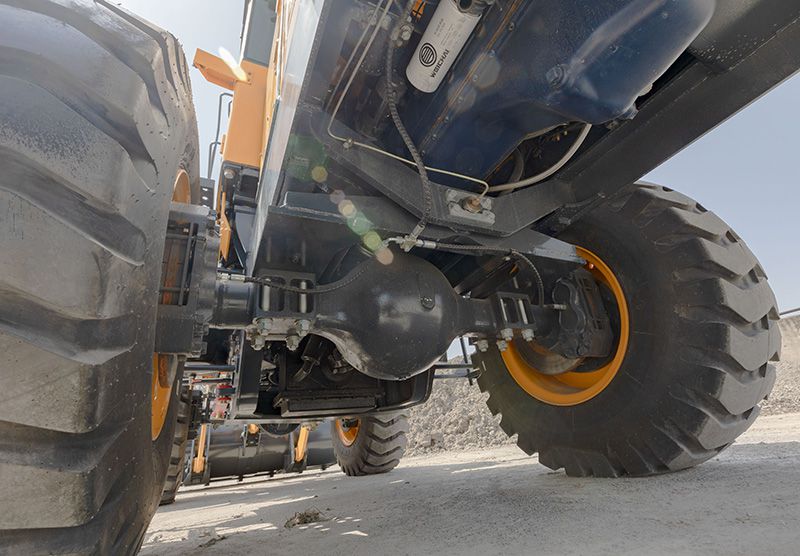

3. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 3.889
3 Type of final reducer Single stage planetary
4 Gear ratio of final reducer 4.941
5 Total ratios 19.216
6 Max. drawing force 83kN
7 Size of tire 17.5-25-12PR
Working Device Hydraulic System
1 Model of oil pump CBGj2100 (SAE)
2 System pressure 160(kgf/cm2)
3 Model of multichannel conversion valve GDF32D2

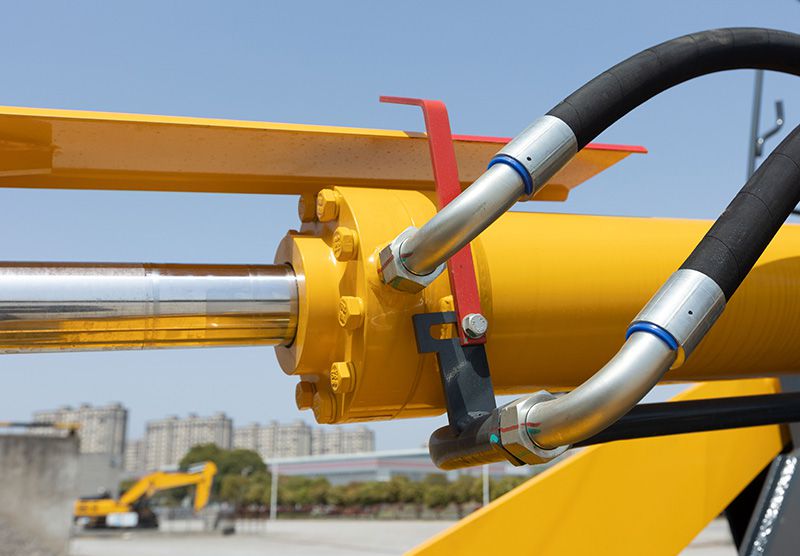

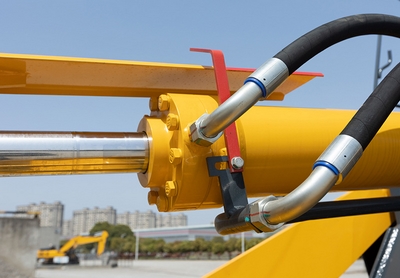

4 (D×L) Dimension of lifting cylinder Ф125×70×697(mm)
5 (D×L) Dimension of tilt cylinder Ф150×70×470(mm)
Steering System

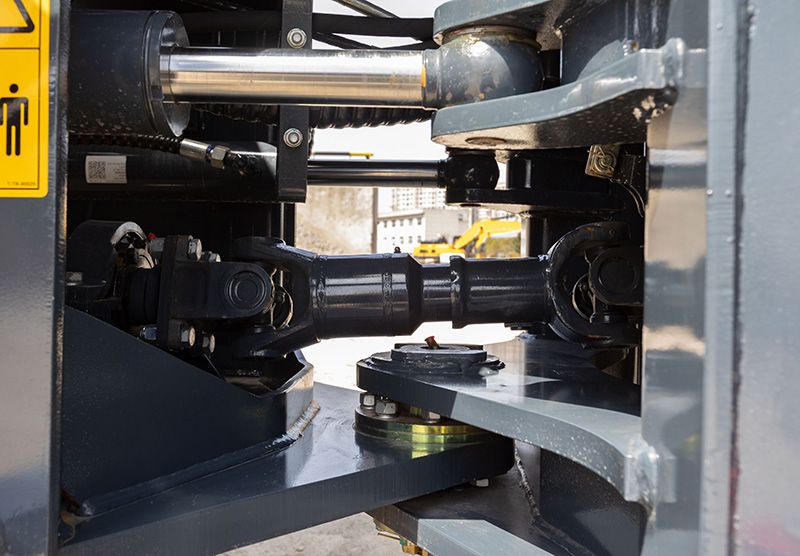

1 Type Middle articulated frame. Full-Hydraulic steering
2 Model of steering pump CBG2050 (SAE)
3 Model of steering gear BZZ1-E400C+FKA-143020
4 Model of single-channel stable shunt valve FLD-D30H
5 System pressure 14MPa
6 Dimension of steering cylinder Ф70×40×357(mm)

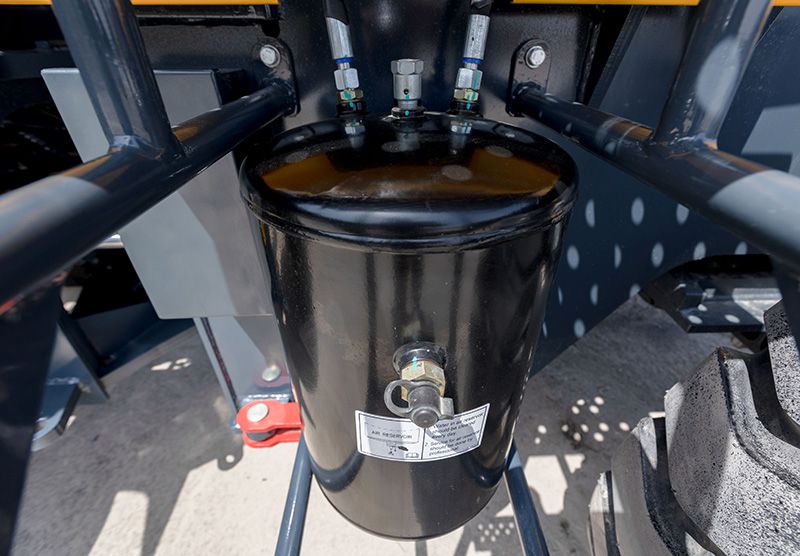

Brake System
1 Type of traveling brake Air assisted oil.4 wheel brake
2 Air pressure 7-8(kgf/cm2)
3 Type of emergency brake Automatic cutting air brake
4 Type of parking brake Drum brake Manual control cutting off air brake
Oil Capacity
1 Fuel (diesel) 130(L)
2 Engine lubricating oil 13.5(L)
3 Oil for converter and gear box 35(L)
4 Oil for hydraulic system 120(L)
5 Oil for driving axles (F/R) 16/15(L)
