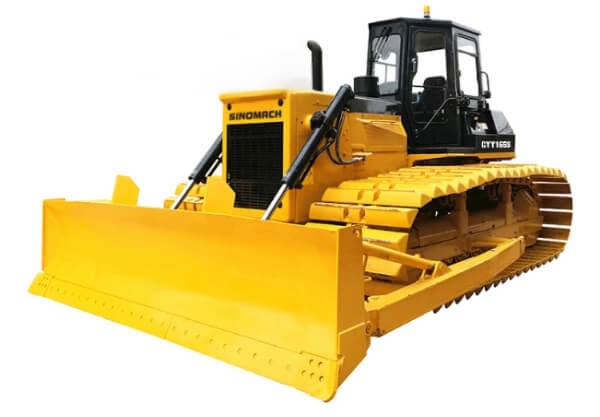

GTY165(S) Bulldozer

GTY165(S) Bulldozer

Description
1. The machine features reasonable layout, excellent performance and advanced technology
2. Higher engine power reserves efficiency ,bigger torque output ,lower fuel consumption ,while better reliability
3. Hydraulic controlled drive,automatically speed regulation and non-stop gear shifting
4. The final drive uses triangle Spline and tip lelief, crowned gear drive to enhance the balance and the stability of the load of transmission part
5. The novel hexahedral cad offers excellent visibility, the powerful ventliation and unparalleled dust-free.

Specifications
Model GTY165 GTY165S
Length×Width×Height (mm) 4996×3416×3240 (Straight tilt blade) 5600×3950×3400 (Straight tilt blade)
Operating weight (kg) 16300 (Straight tilt blade) 18600 (Straight tilt blade)
Diesel engine SHANGCHAI SC11CB184G2B1
Rated output power (kW) 136
Track width (mm) 510 1000
Blade dimensions Length×Height (mm) 3416×1150 (Straight tilt blade) 3970×1050 (Straight tilt blade)
