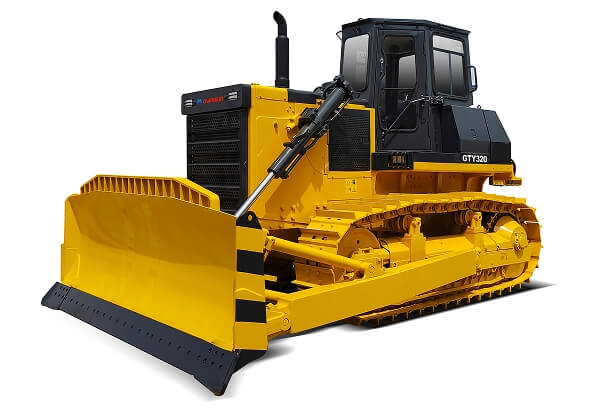

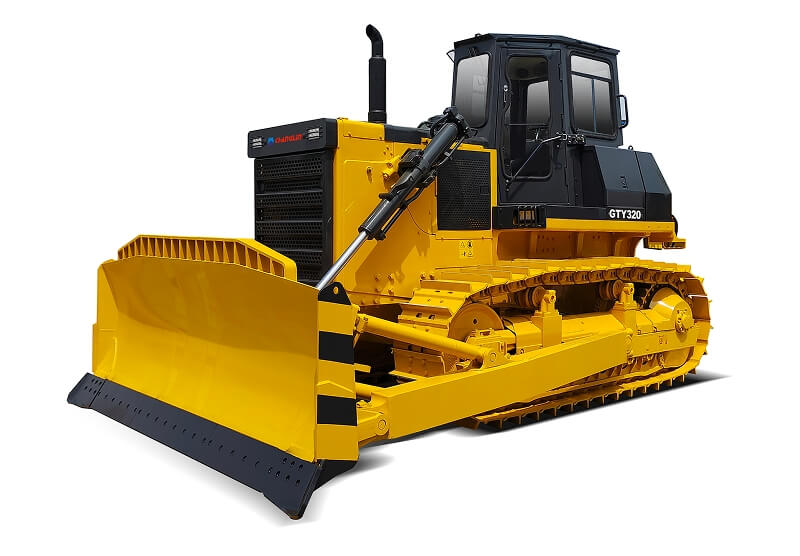

GTY320 Bulldozer

GTY320 Bulldozer

Description
1. The appearance of the vehicle is based on optimization design
2. Higher engine power reserves efficiency ,bigger torque output ,lower fuel consumption ,while better reliability
3. Hydraulic controlled drive,automatically speed regulation and non-stop gear shifting
4. 3-element,single stage,single phase torque converter for higher efficiency and bigger capacity
5. The novel hexahedral cad offers excellent visibility, the powerful ventliation and unparalleled dust-free.
6. The final drive uses triangle Spline and tip lelief, crowned gear drive to enhance the balance and the stability of the load of transmission part
7. New blade is more durable and capacious
8. Alarming monitoring system is efficient and reliable
9. Implement controls are piloted to minimize operating effort

Specifications
Model GTY320
Length×Width×Height (mm) 6880×4130×3640 (Semi-U blade)
Operating weight (kg) 35900 (Semi-U blade)
Diesel engine Cummins NTA855-C360S10
Rated output power (kW) 286
Track width (mm) 560
Blade dimensions Length×Height (mm) 4130×1590 (Semi-U blade)
