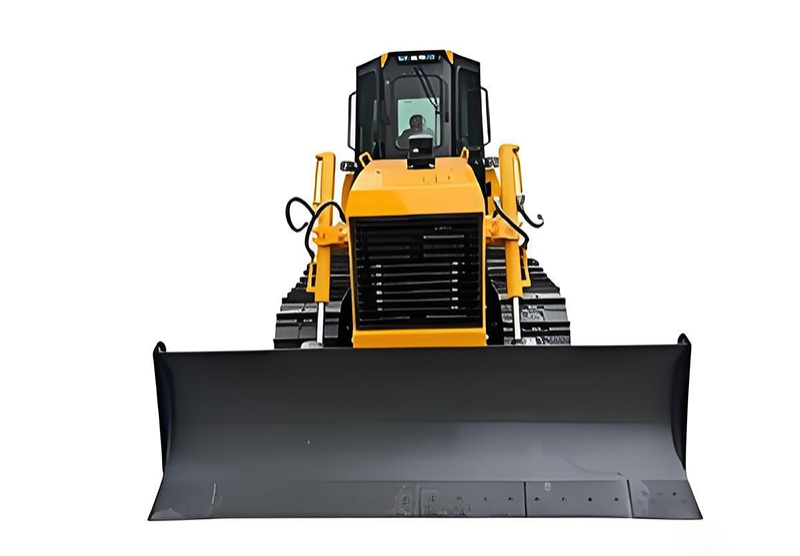

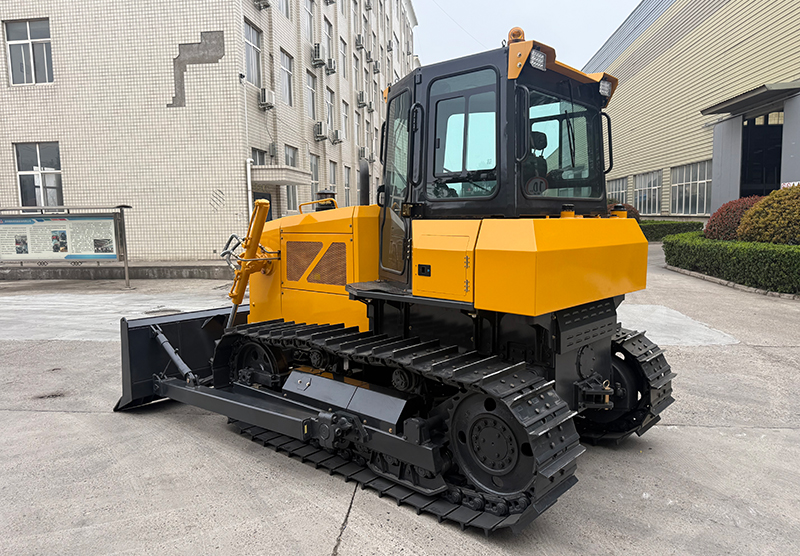

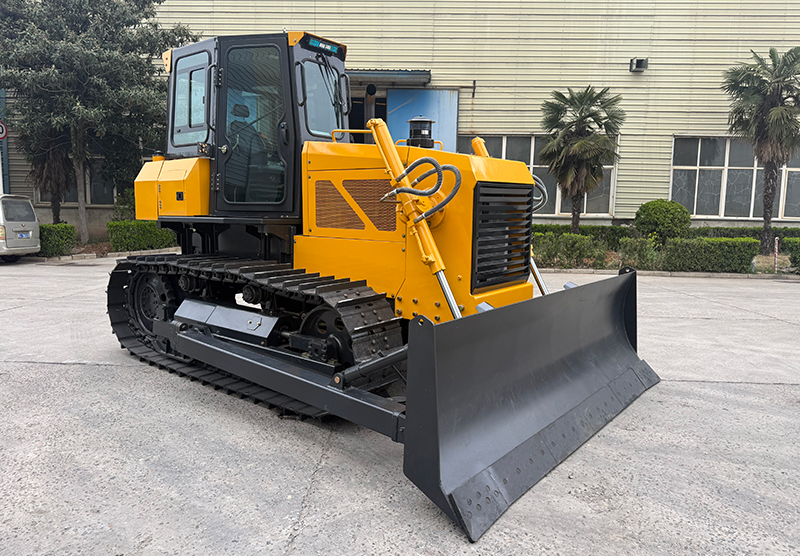

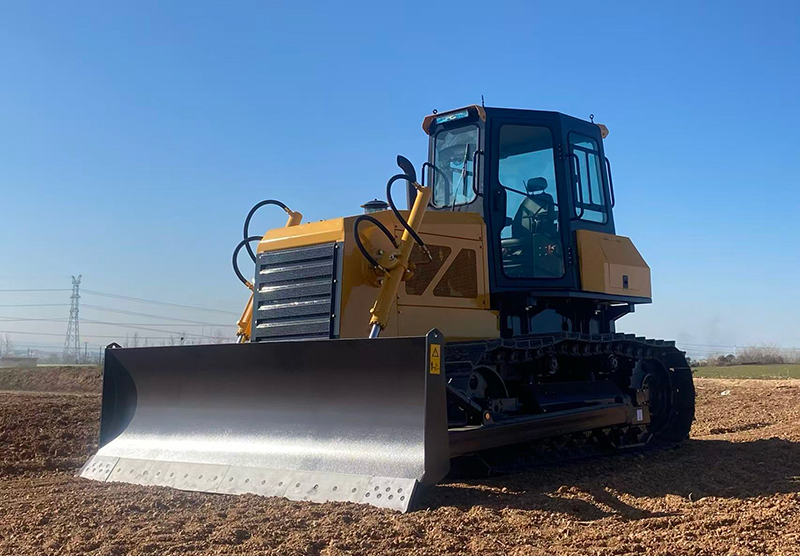

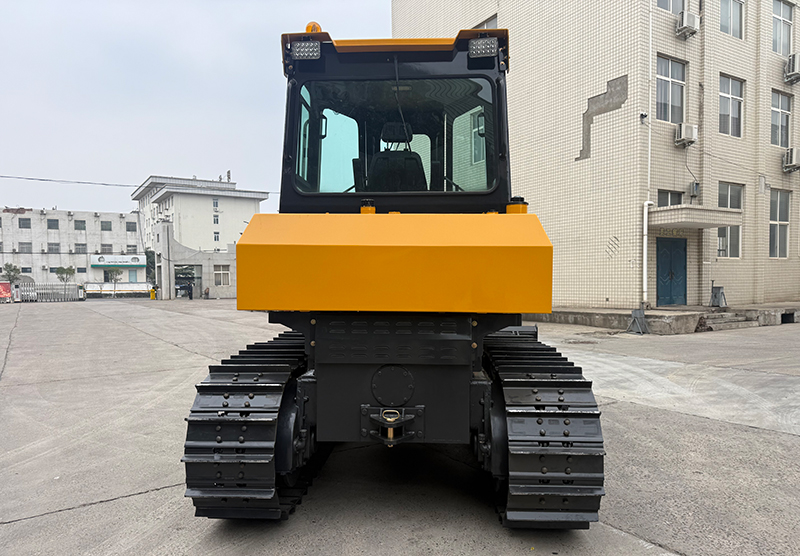

Bulldozer GTY12

The GTY12 bulldozer enhances the engine output power (up to 93kW) and dozing capacity (up to 3.0m³) while maintaining high cost-performance and low maintenance costs. This significant upgrade in power and capacity enables higher intensity and efficiency in landfill, infrastructure, and environmental projects.

  • Operating Weight: 12500kg
  • Rated Power: 93 kW
  • Blade Width: 3250mm
Inquiry
Video
Bulldozer GTY12
  • Bulldozer GTY12
  • Bulldozer GTY12
  • Bulldozer GTY12
  • Bulldozer GTY12
  • Bulldozer GTY12
  • Specifications
    Model GTY12
    Type Standard mechanical crawler
    Engine model YTOLR6A3Z-20
    Rated power 93/2000 kW/rpm
    Operating weight(without ripper) 12500kg
    Dimensions (L×W×H) (without ripper) 4600×3250×3100mm
    Ground clearance 380mm
    Ground pressure 49.5KPa
    Track gauge 1860mm
    Dozing capacity 3.0m³
    Blade width 3250mm
    Blade height 1040mm
    Blade lifting height 900mm
    Max. digging depth of blade 400mm
    Track board width 500mm
    Track pitch 171mm
    Number of track links 43
    Number of carrier rollers 2
    Number of track rollers 6
    Gradeability 30°
    Forward speed F:2.39-10.59km/h
    Rear speed R:3.92-7.11km/h
    Drawbar / ripper (optional) Fixed / three-shank
    Features
    • Dual Power Options The bulldozer comes with a high-pressure common rail engine jointly developed by YTO and Ricardo technology, meeting China Stage II emission standards. The system also offers an optional Cummins engine to meet users’ higher power demands and operational preferences.

    • Deep Optimization for Harsh Working Conditions The bulldozer is equipped with a desert-type air filtration system and a front-mounted radiator protection structure. These configurations improve heat dissipation efficiency and extend maintenance intervals. The equipment maintains stable performance in high-dust and high-temperature environments such as coal yards, deserts, and landfill sites.

    • High-Strength Chassis & Undercarriage The equipment adopts a high-quality Chinese four-wheel and one-belt running system combined with a reinforced chassis structure. Key structural components use custom high-strength materials, which significantly enhance impact resistance and overall durability of the machine.

    • Smart Monitoring & Efficient Operation The bulldozer features an electronic monitoring system that provides real-time operational status feedback. The equipment comes standard with LED lighting for improved visibility in low-light conditions. The enlarged 3.0 m³ blade capacity enables continuous high-efficiency operation throughout day and night working cycles.
