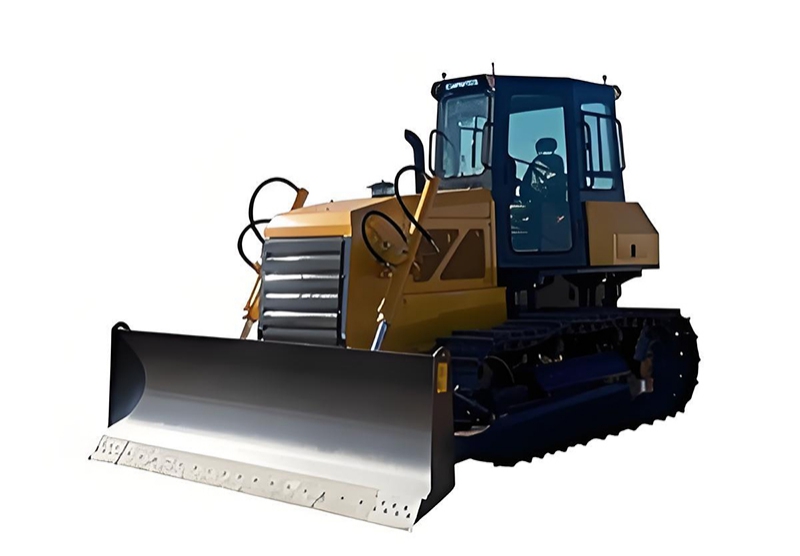

Bulldozer GTYH12

The GTYH12 hydrostatic bulldozer is independently developed by SINOMACH-HI. It integrates power, efficiency, and precise operational control through an advanced closed-loop electro-hydraulic variable system. Whether in extreme mining construction conditions or fine-grading highway projects, the GTYH12 bulldozer stands as a reliable and productive machine built for demanding applications.

  • Operating Weight: 12800kg
  • Rated Power: 93 kW
  • Blade Width: 3250mm
Bulldozer GTYH12
Inquiry
Specifications
Model GTYH12
Type Standard hydraulic crawler type
Engine model YTO LR6A3Z-20
Rated power 93/2000 kW/RPM
Operating weight(without ripper) 12800kg
Dimensions (L×W×H) (without ripper) 4600×3250×3100mm
Ground clearance 380mm
Ground pressure 50.7KPa
Track gauge 1860mm
Dozing capacity 3 m³
Blade width 3250mm
Blade height 1040mm
Blade lifting height 900mm
Max. digging depth of blade 400mm
Track board width 500mm
Track pitch 171mm
Number track links 43
Number of carrier rollers 2
Number of track rollers 6
Max. working pressure 17.5MPa
Hydraulic flow 100L/min
Gradeability 30°
Forward speed F:0-10km/h
Reverse speed R:0-10km/h
Drawbar / ripper (optional) Fixed type / three-shank
Features
  • Stable Drive System The bulldozer adopts a closed hydrostatic system equipped with Linde/Rexroth components, specifically optimized for pressure balance in the 120HP class. The system ensures fast and stable power response without performance drop even under extreme heavy-load conditions.

  • All-Terrain Load Adaptation The intelligent control system detects dozing resistance in real time and automatically adjusts engine speed accordingly. The system provides precise torque distribution when handling high-capacity bulk materials with a 3.0 m³ blade, significantly improving overall working efficiency.

  • Versatile Control & Stepless Speed Operation The bulldozer combines electro-hydraulic single-lever control with a 0-10 km/h stepless speed system. This configuration allows smoother switching between forward and reverse movements, effectively reducing cycle time and improving productivity on large construction sites.

  • Reliability for Demanding Environments The bulldozer is built with a reinforced chassis and high-standard waterproof braided wiring harnesses for enhanced durability. LED lights come as standard, ensuring stable continuous operation in harsh environments such as mines, ports, and heavy-duty construction sites.
