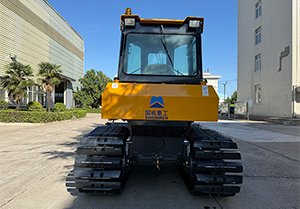

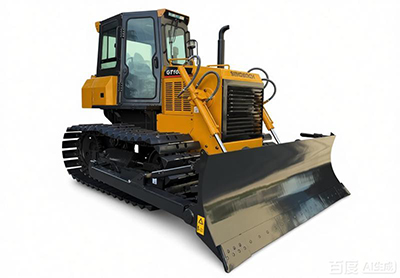

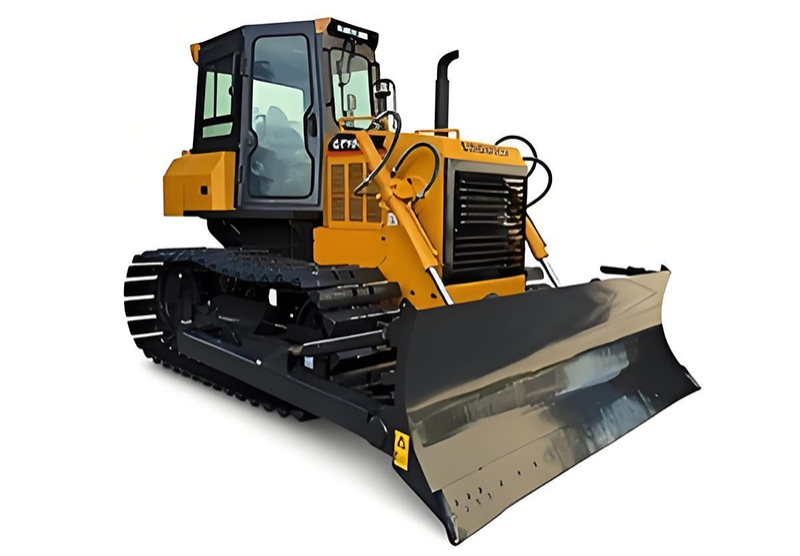

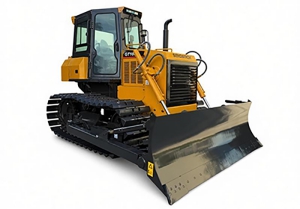

Bulldozer GTY11

The 110 hp bulldozer with mechanical transmission is newly designed to combine the agility of a small dozer with the durability of a medium-sized model. Its compact turning radius and stable performance allow efficient operation in confined areas such as power plant coal yards, ports, steel mill transport corridors, and small landfill sites. The bulldozer is also well suited for water conservancy projects, urban and rural construction, and defense engineering applications.

  • Operating Weight: 10800kg
  • Rated Power: 81 kW
  • Blade Width: 2960mm
Inquiry
Video
Bulldozer GTY11
  • Bulldozer GTY11
  • Bulldozer GTY11
  • Bulldozer GTY11
  • Bulldozer GTY11
  • Bulldozer GTY11
    • Specifications
    Model GTY11
    Type Standard mechanical crawler
    Engine model YTOLR6A3-23
    Rated power 81/2300 kW/rpm
    Operating weight(without ripper) 10800kg
    Dimensions (L×W×H) (without ripper) 4400×2960×3030mm
    Ground clearance 368mm
    Ground pressure 55.5KPa
    Track gauge 1650mm
    Dozing capacity 2.6m³
    Blade width 2960mm
    Blade height 960mm
    Blade lifting height 830mm
    Max. digging depth of blade 350mm
    Track board width 450mm
    Track pitch 171mm
    Number of track links 39
    Number of carrier rollers 1
    Number of track rollers 6
    Gradeability 30°
    Forward speed F:2.6-10.29km/h
    Rear speed R:3.67-6.63km/h
    Drawbar / ripper (optional) Fixed / three-shank
    Features

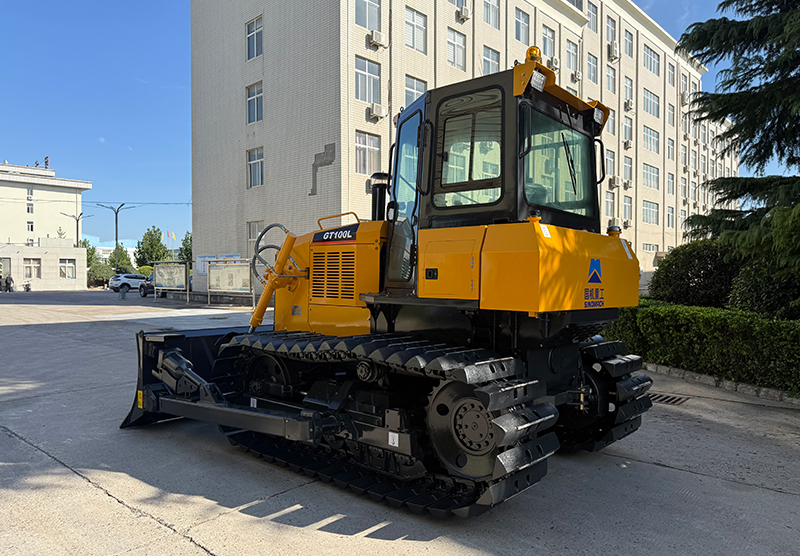

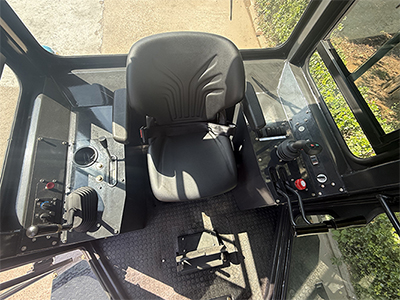

    Bulldozer GT100
    Bulldozer GT100
    Bulldozer GT100

    • Energy Efficient and Environmentally Friendly Engine The engine is developed through joint technology between YTO and Ricardo, meeting China Stage II emission standards while delivering low noise, high torque, and energy-efficient performance.

    • Reinforced Transmission & High Reliability The transmission system adopts a two-stage spur gear design with large-module gears, providing high load capacity and strong reliability. The 4F+2R mechanical gearbox features a simple structure for easy maintenance.

    • Robust Chassis & Impact Resistance The undercarriage and reinforced chassis are optimized with specially designed materials, significantly improving structural strength and impact resistance for harsh working conditions.

    • Durable Sealing & Night Vision The hydraulic system utilizes high-performance fluororubber seals to ensure reliable sealing, while high-intensity LED headlights are equipped as standard to enhance visibility, safety, and efficiency during night operations.
